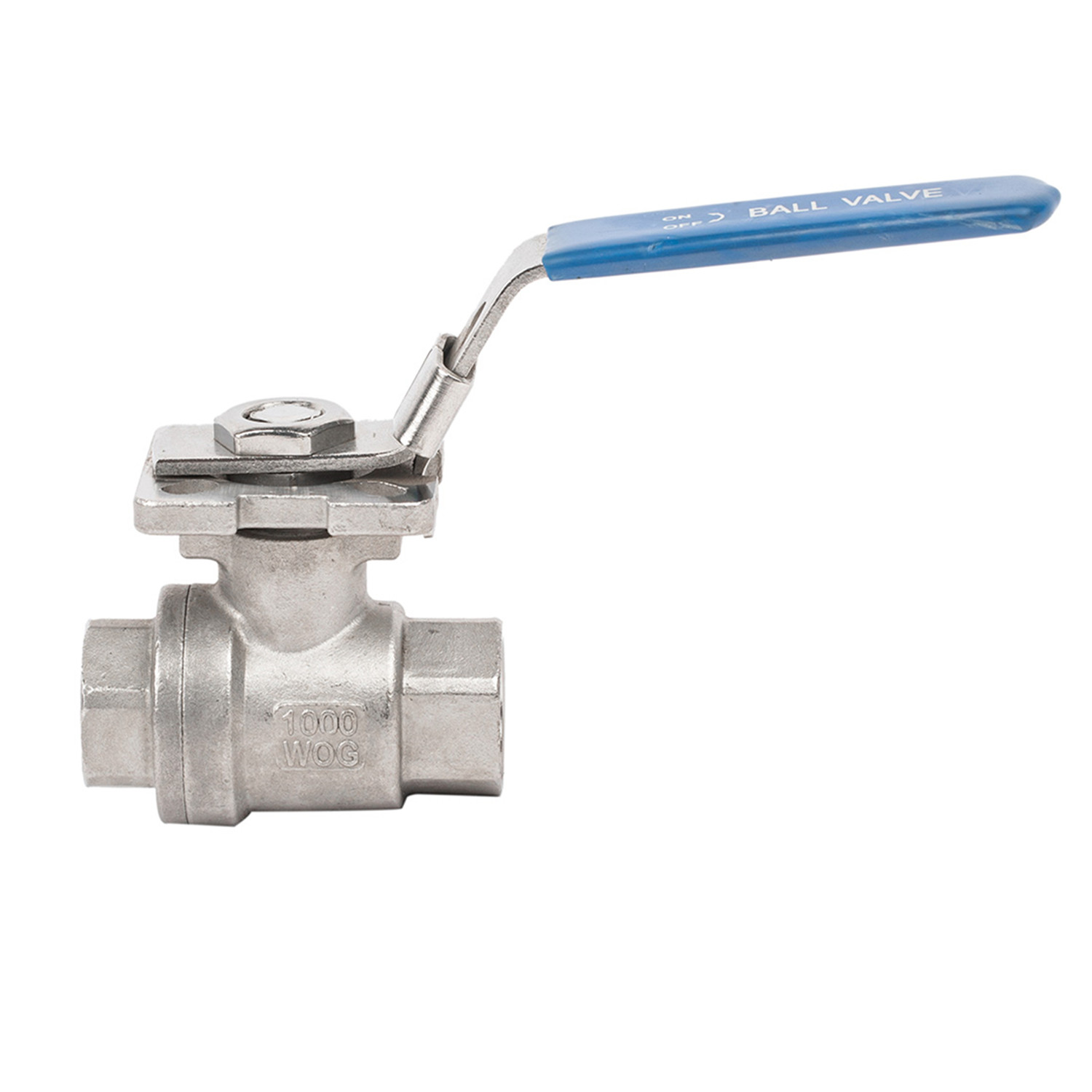

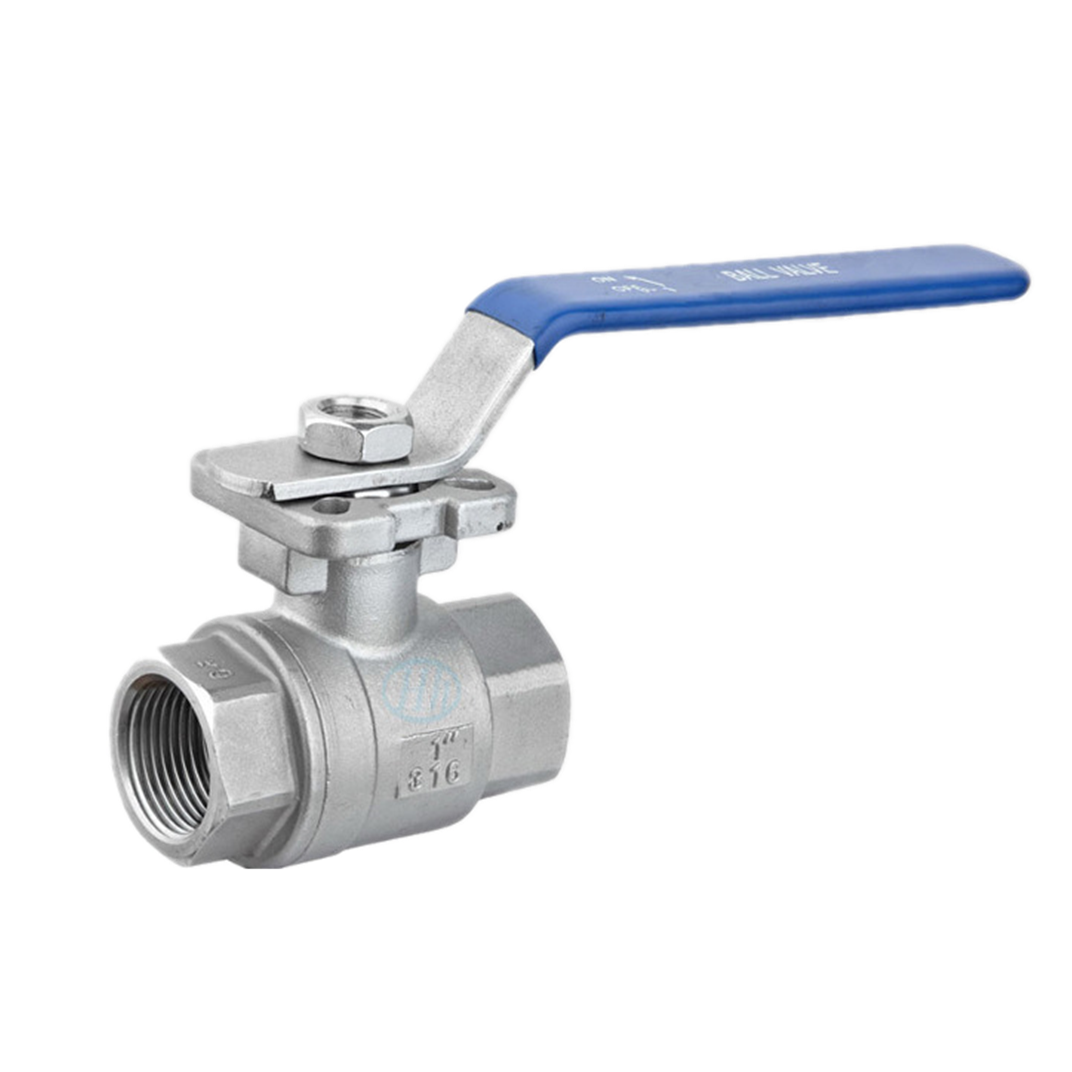

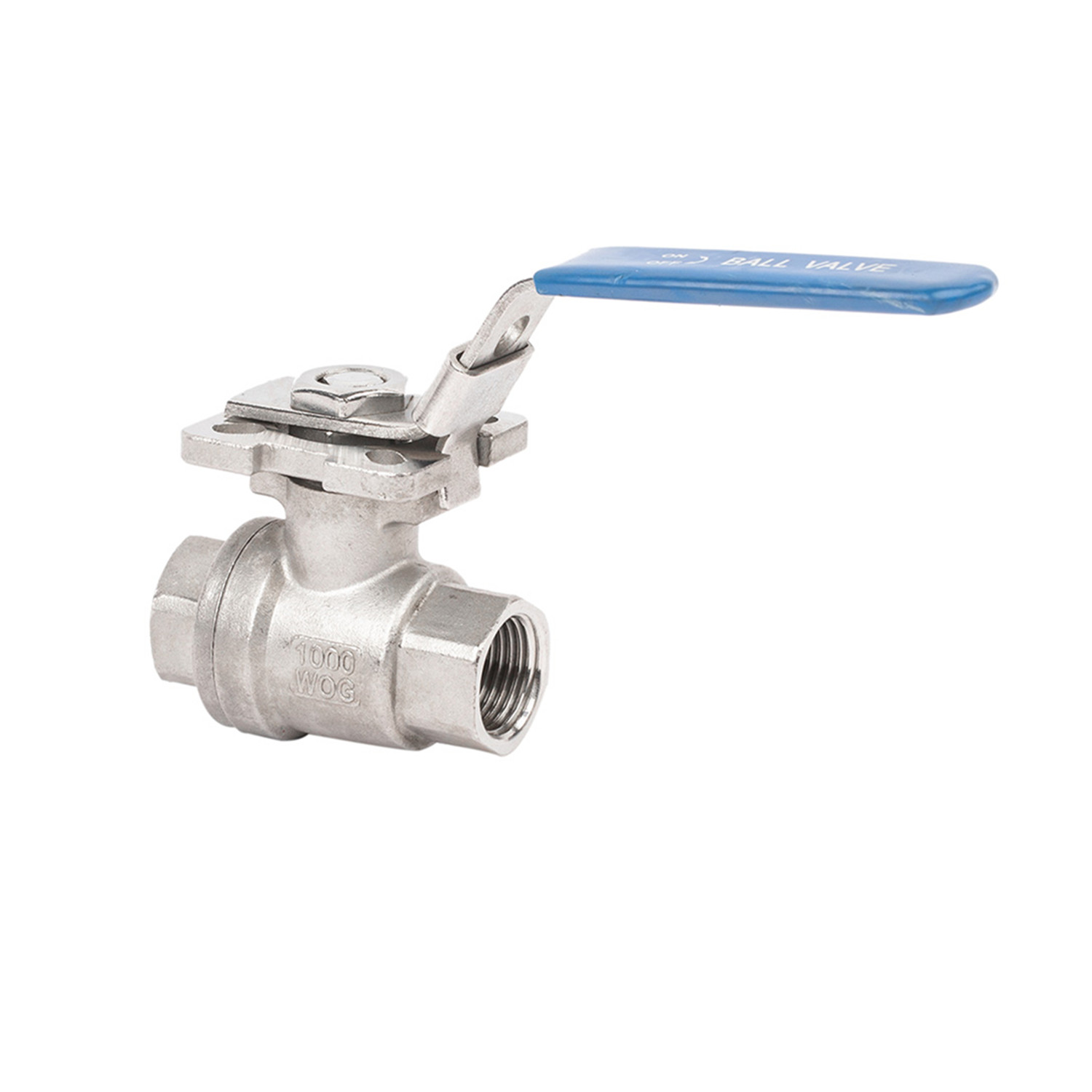

Stainless Steel Threaded 2-PC Ball Valve with ISO5211 Direct Mounting Pad
Main Dimensions
| NPS | DN | D | L | H | H1 | RA | RB | Ra | Rb | K |
| 1/2" | 15 | 15 | 62 | 38 | 9 | 18 | 21 | 3 | 3 | 9 |
| 3/4" | 20 | 20 | 75 | 41 | 9 | 18 | 21 | 3 | 3 | 9 |
| 1" | 25 | 25 | 85 | 58 | 11 | 21 | 25 | 3 | 3.5 | 11 |
| 11/4" | 32 | 30 | 91 | 60 | 11 | 21 | 25 | 3 | 3.5 | 11 |
| 11/2" | 40 | 38 | 105 | 75 | 14 | 25 | 35 | 3.5 | 4.5 | 14 |
| 2" | 50 | 49 | 120 | 80 | 14 | 25 | 35 | 3.5 | 4.5 | 14 |
