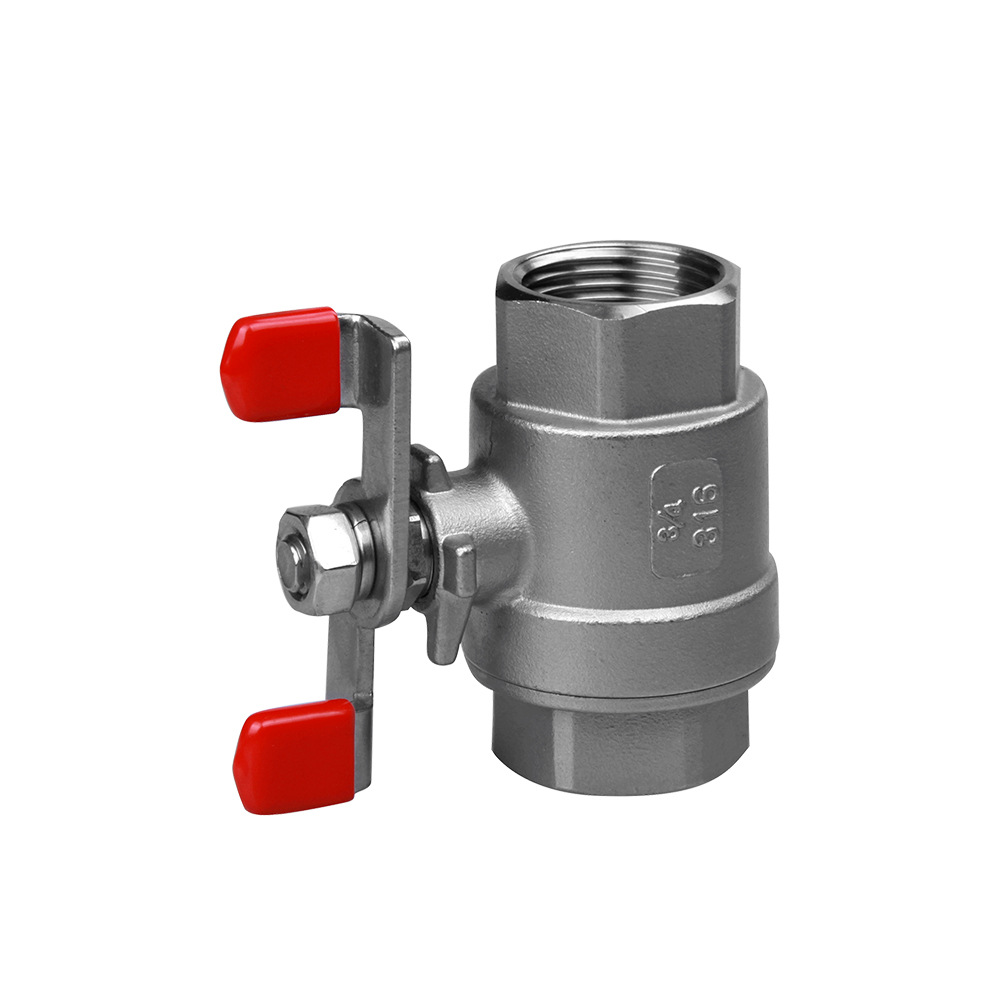

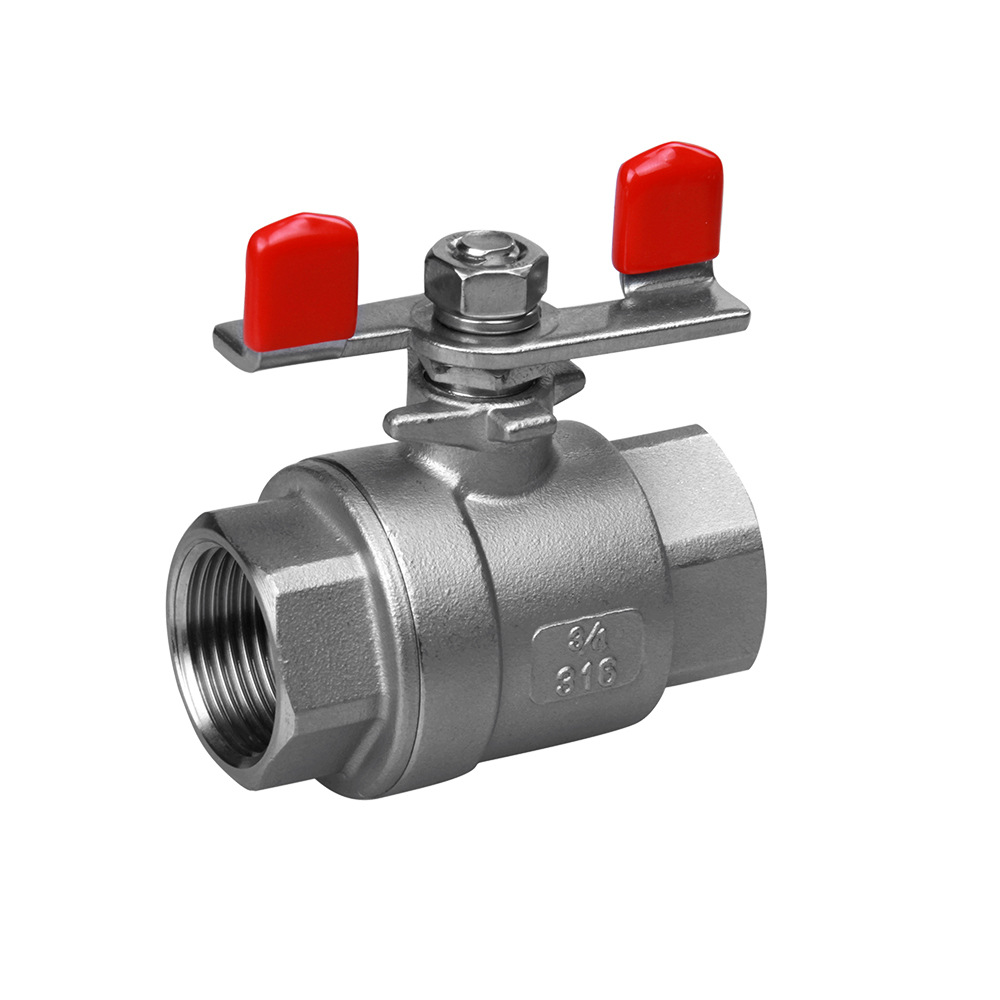

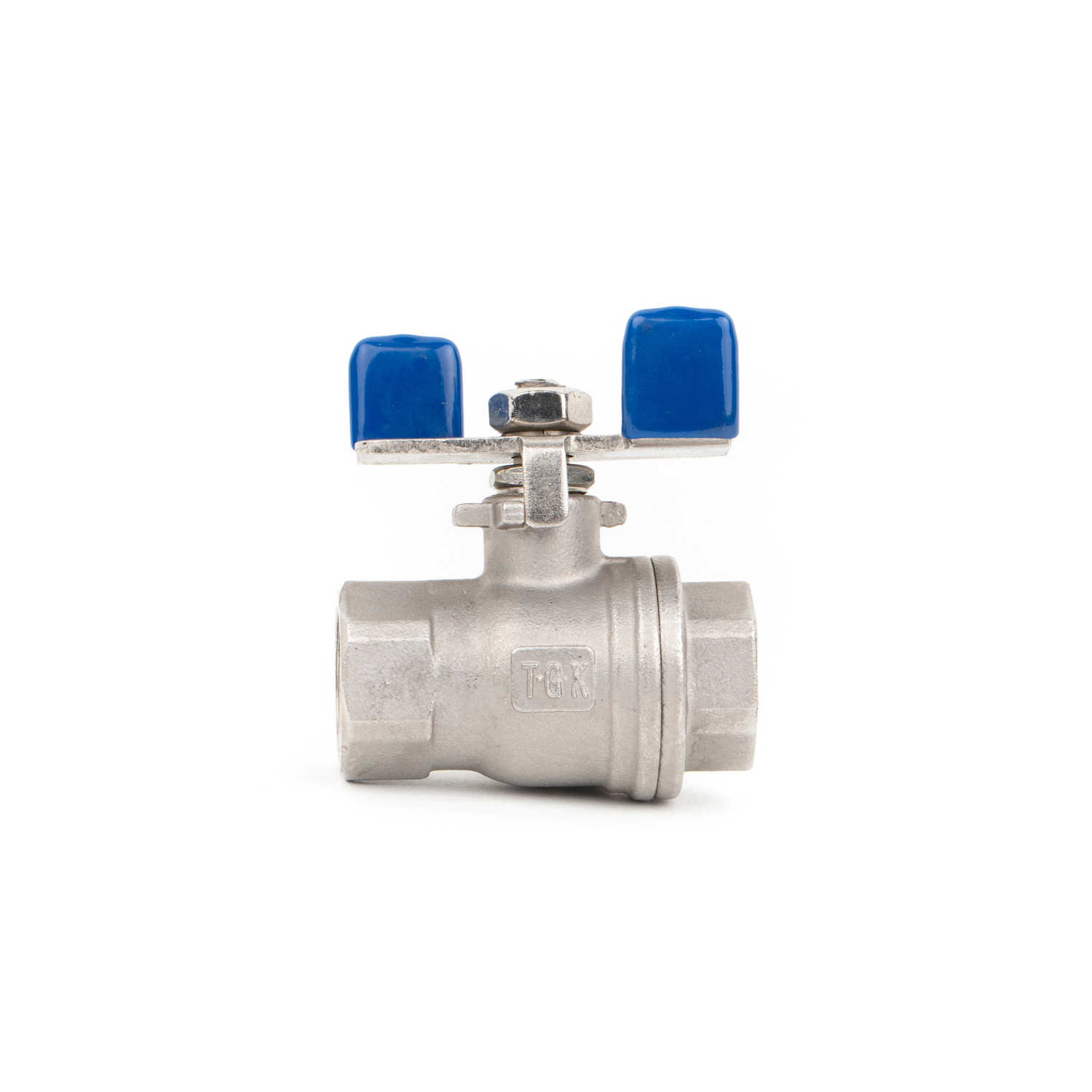

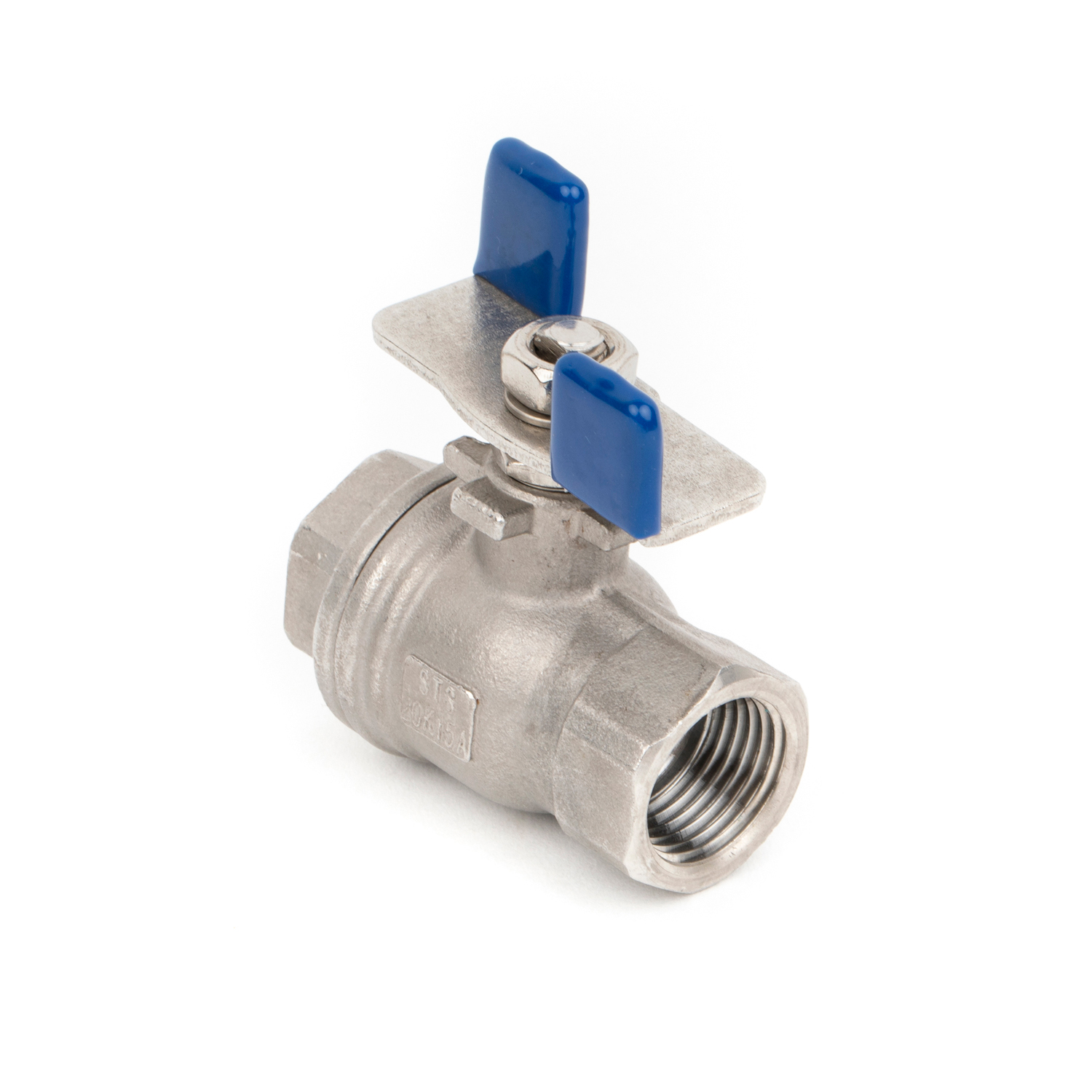

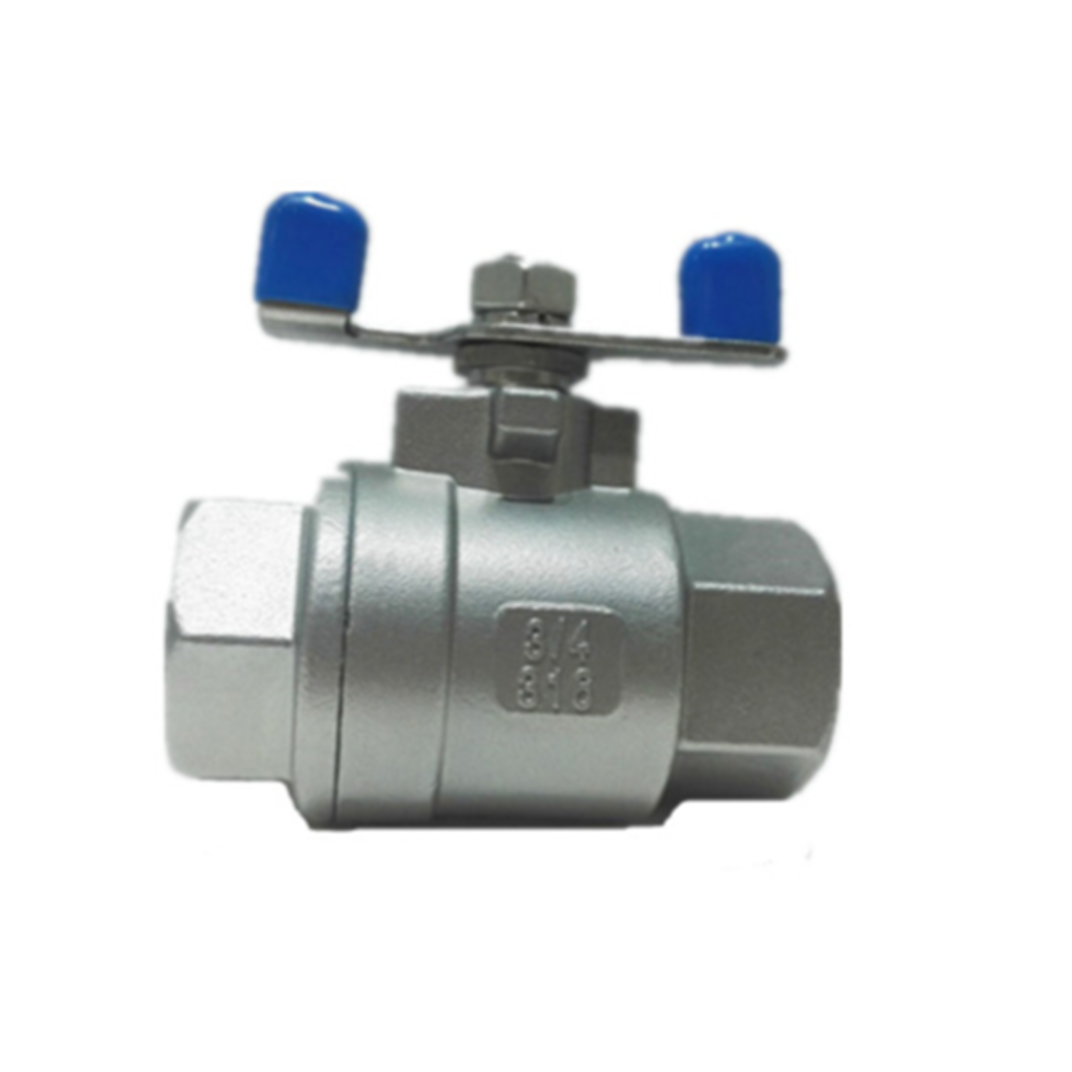

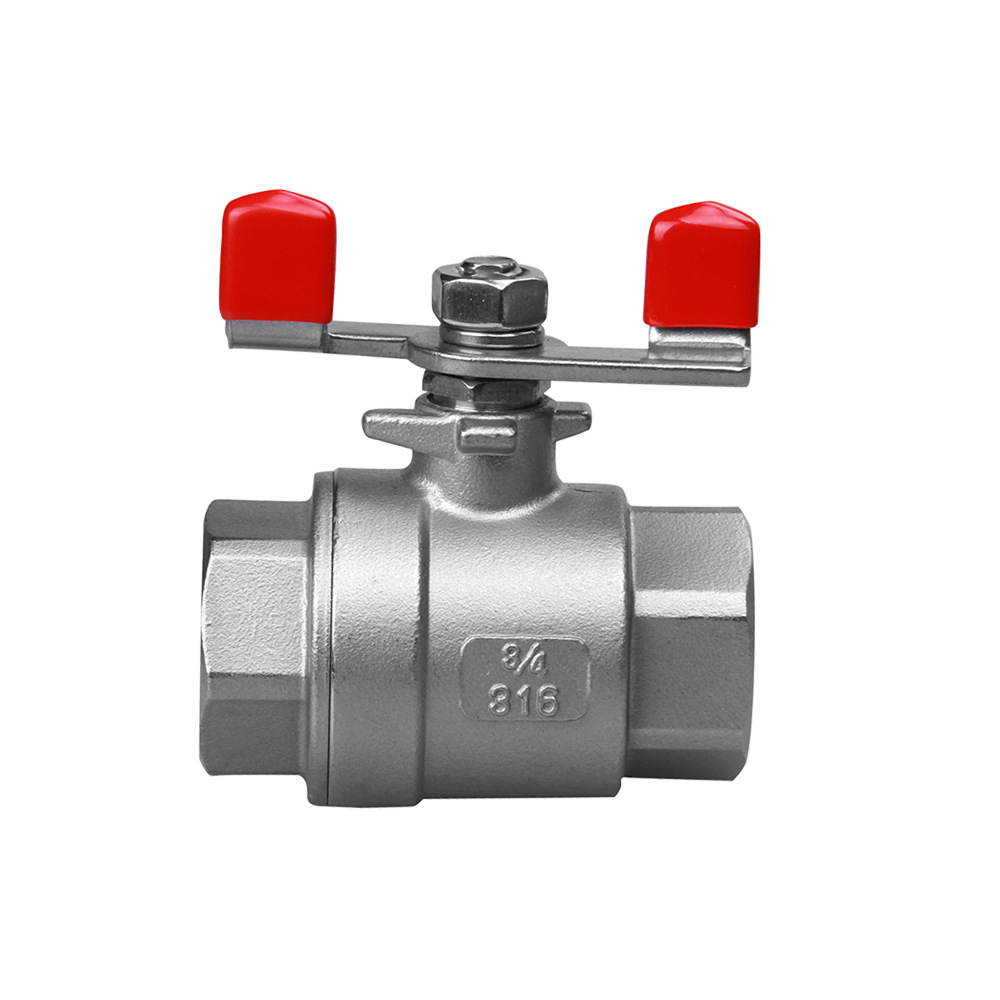

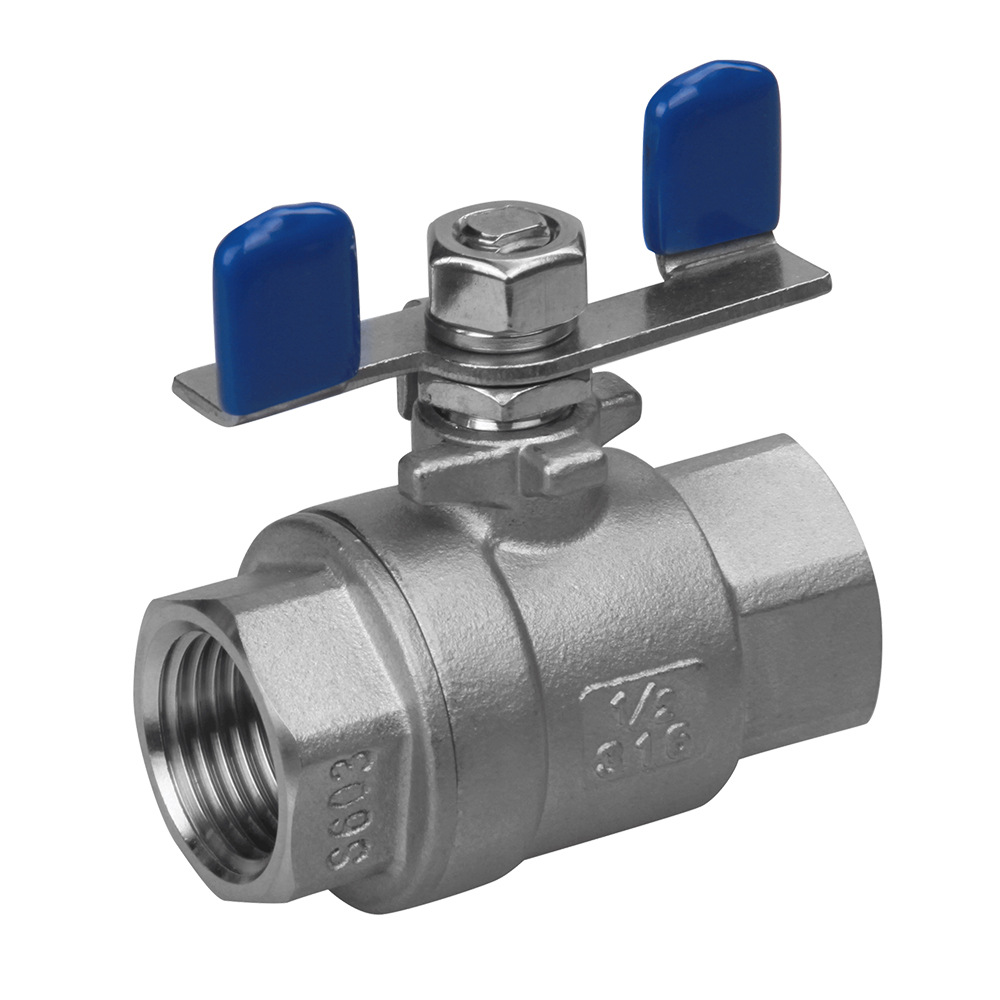

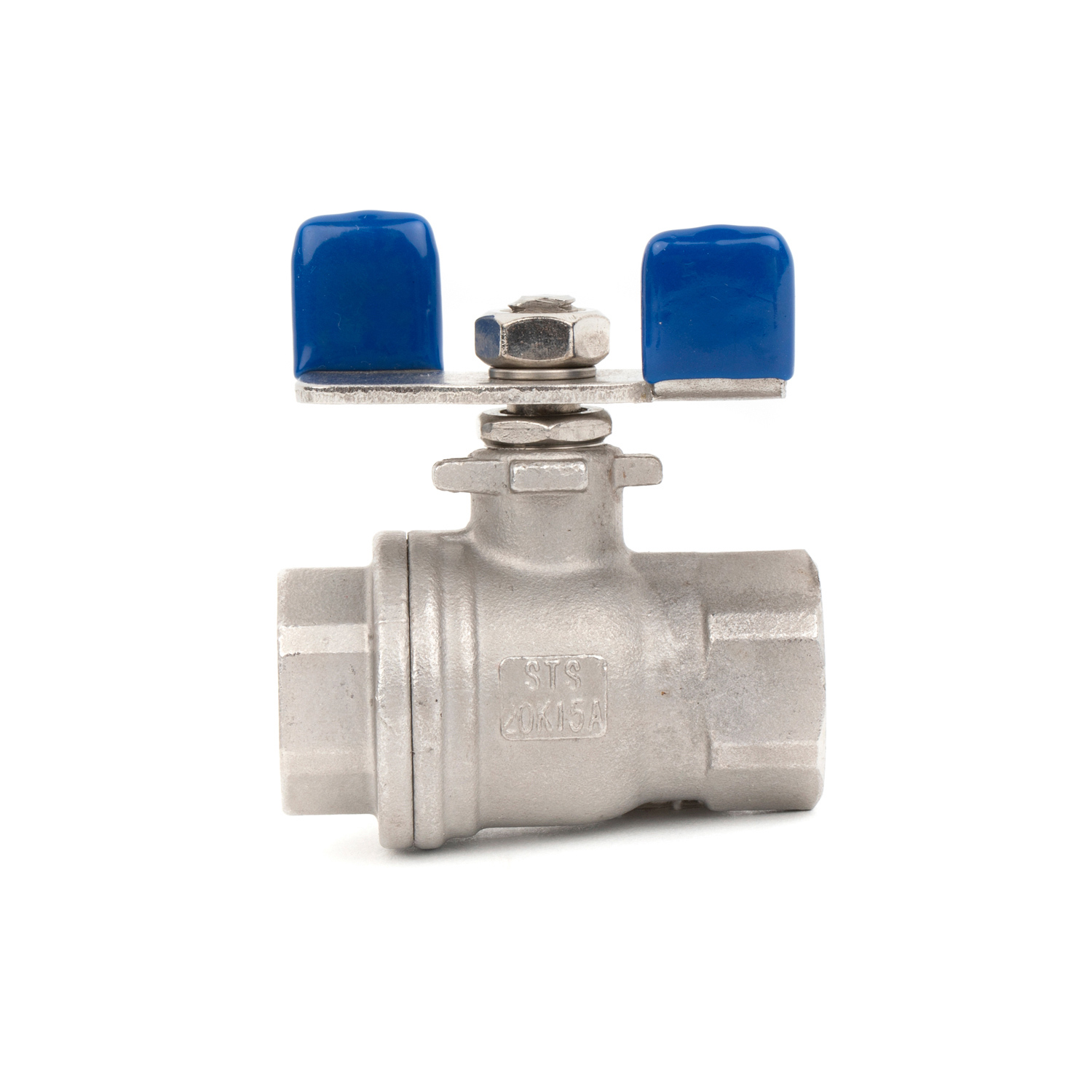

Stainless Steel Threaded 2-PC Ball Valve with Butterfly Lever

Features:
· Size: 1/4"~4"
· Body Material: ASTM A216 WCB/DIN 1.0619,SS316/ASTM A351 CF8M/DIN 1.4408, SS304/ASTM A351 CF8/1.4308
· Seat Material: PTFE, RPTFE (15% Glass Fiber), RPTFE (25% Carbon Fiber), PPL etc.
· Max. Pressure:6.4MPa
· Temperature Range:-20oC~232oC
· Suitable Medium:Water,Oil,Gas and some Corrosive Liquids
· Blow-out Proof Stem/Reduced Port
· Investment Casting Body
· 1000PSI(PN64)W.O.G 150lb

View details

Main Parts and Materials


1		BodyCF8M/CF8/WCB8PackingPTFE
2GasketPTFE9GlandSS304/SS
3CapCF8M/CF8/WCB10Stem NutSS304/SS
4SeatPTFE11HandleSS304/SS
5BallSS316/SS304/SS12Spring WasherSS304/SS
6StemSS316/SS304/SS13Plastic CoverPlastic
7Thrust WasherPTFE14Stem NutSS304/SS


Main Dimensions

NPSDNDLWH
1/4"811.553.59351
3/8"1011.553.59351
1/2"1513.5629355.5
3/4"2017.57411059
1"2522.58712568.5
11/4"322910514575
11/2"403510817086
2"504812517096
21/2"6565154210127.5
3"7680177.5240134
4"100100228314160
