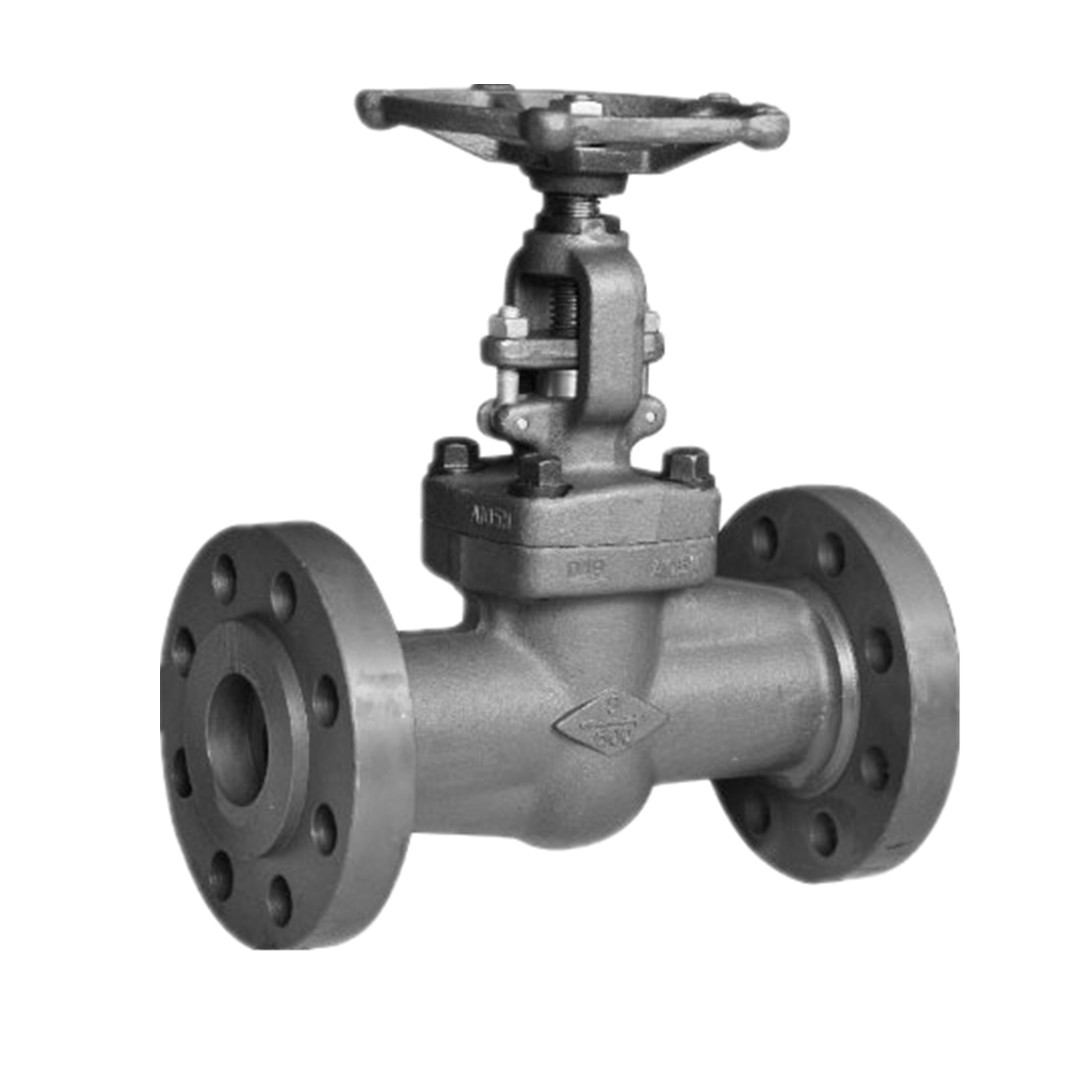

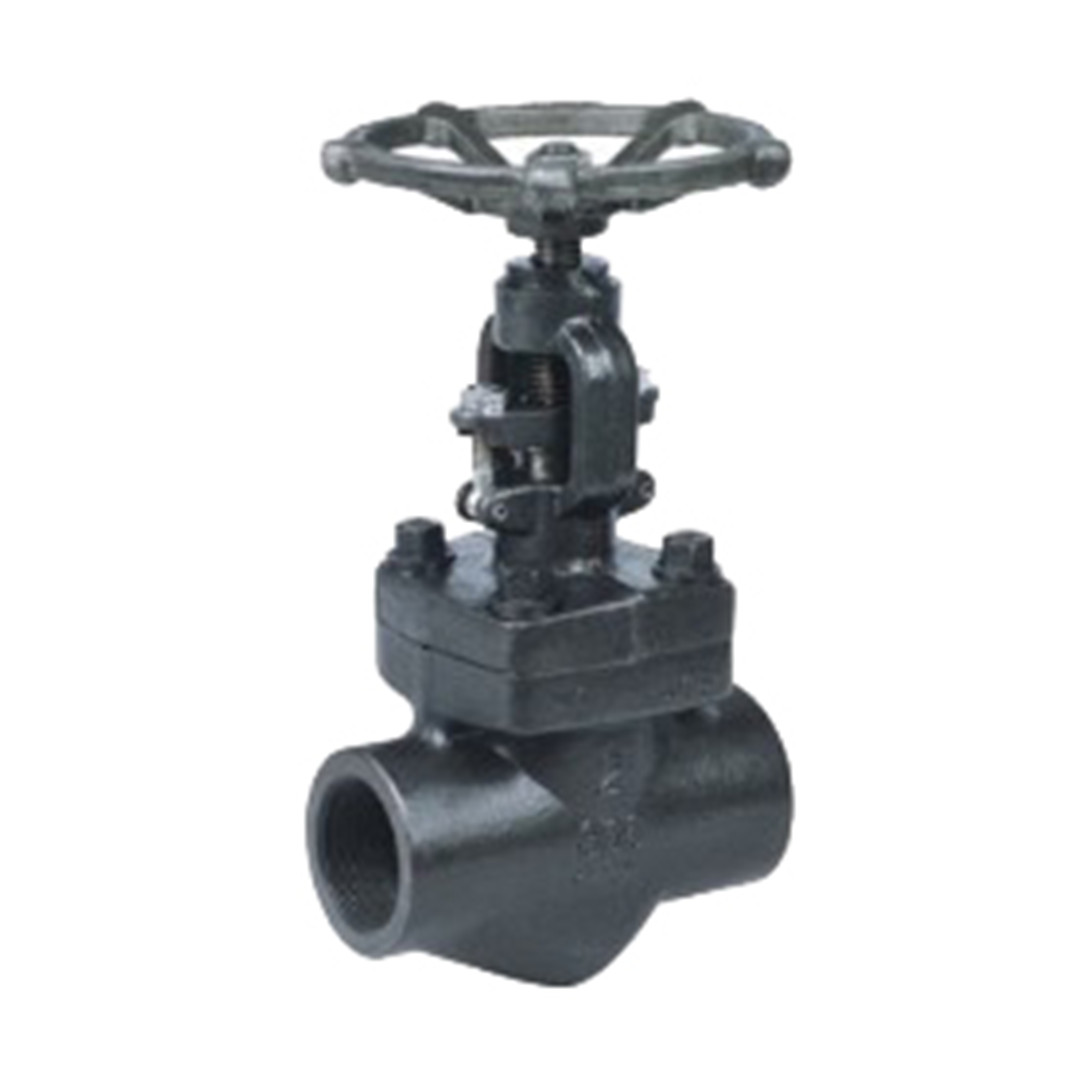

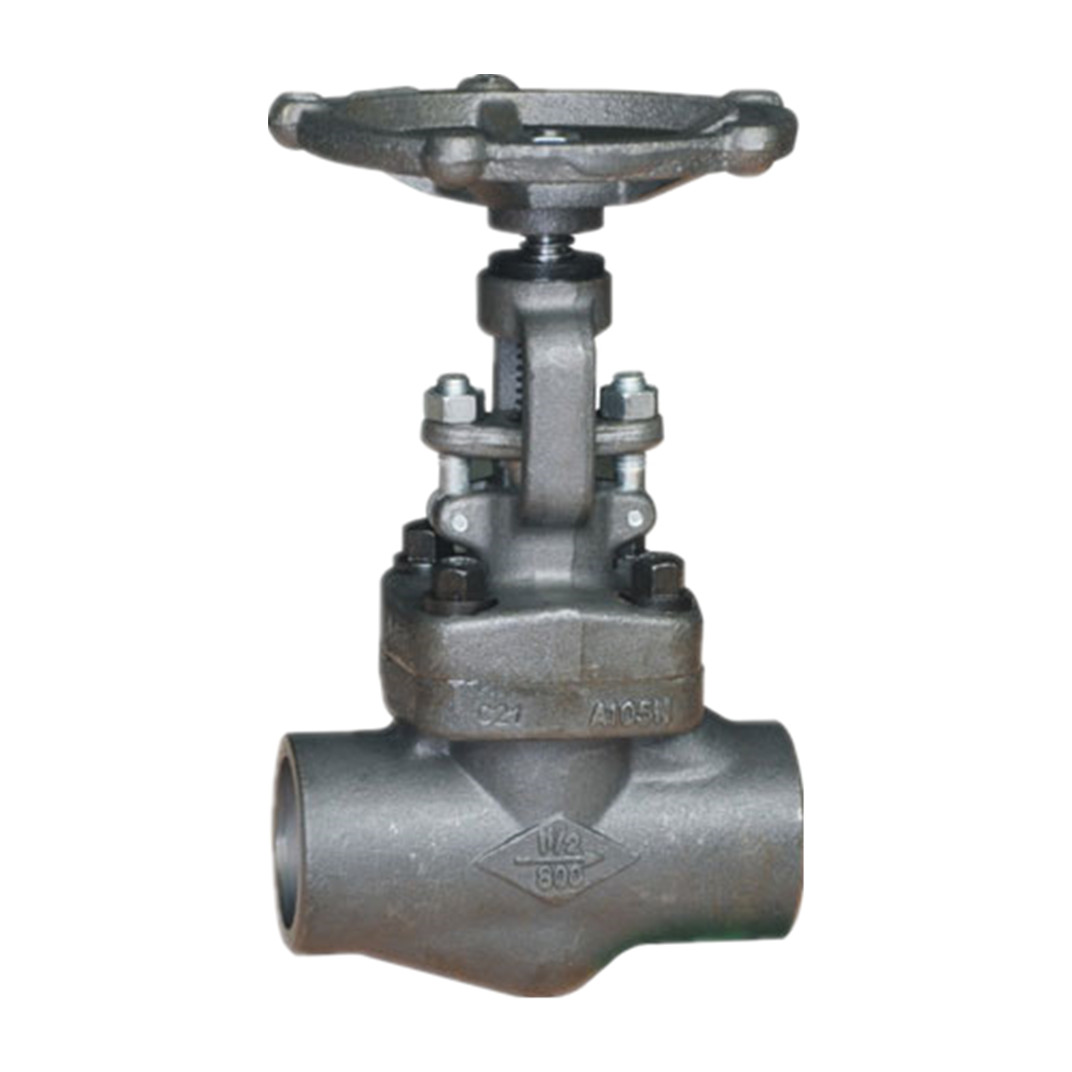

Forged Steel Globe Valve

Features

1. Efficient packing seal at backseat to ensure no leakage from stem.

2. Outside Screw & Yoke construction facilitate stuffing box maintenance.

3. Metallic ring gasket or spiral wound gasket can be applied to ensure the tight seal of body/bonnet joint.

Fully guided disc ensures accurate alignment of disc and seat and reduces wear on seating surfaces.

View details

Technical Specification

Socket weld end/Screwed end

ANSI B16.11/ANSI B1.20.1

Design standard

API 602, ASME B16.34

Pressure Range

150LB to 2500LB

Size Range

1/4" to 3"

Material

Forged Carbon, Stainless or Alloy Steel Materials

Connection type

Socket weld end/Screwed en

Working Temperature

≤500°C

Operating Type

Handwheel

Sealing surface material

Alloy

Pressure test

GB/T13927, API598

Face to Face

GB/T12221,ASME B16.10
