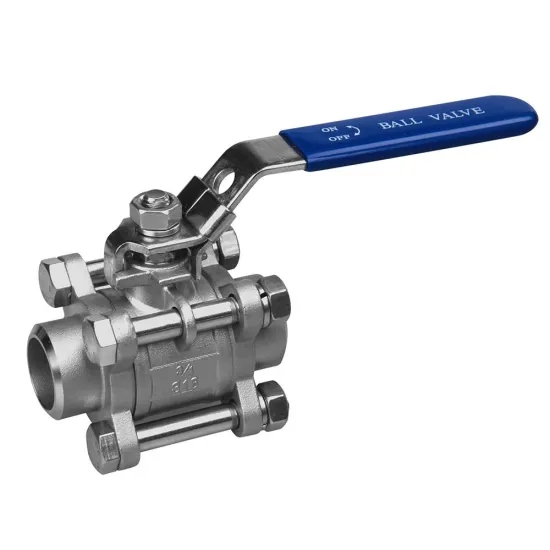

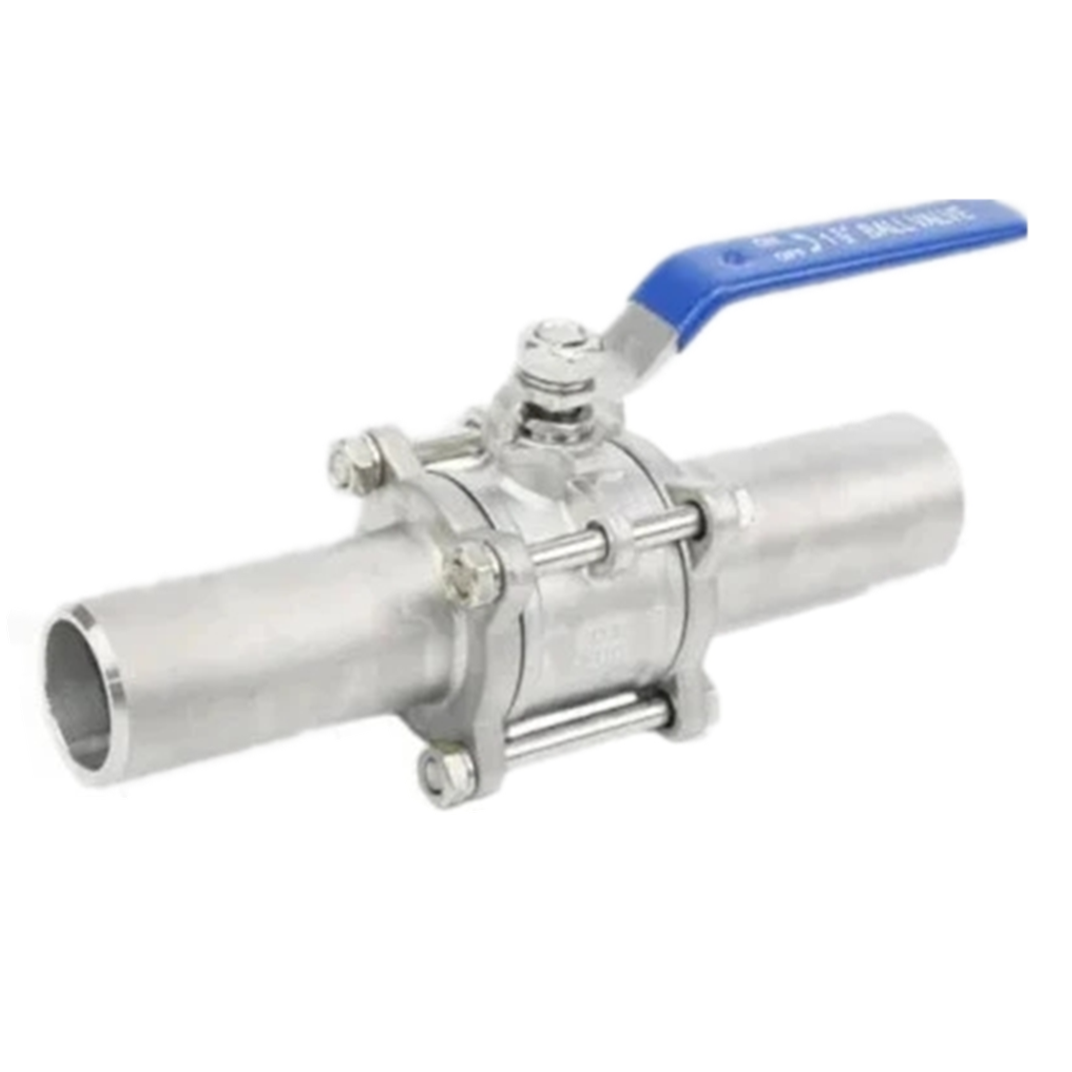

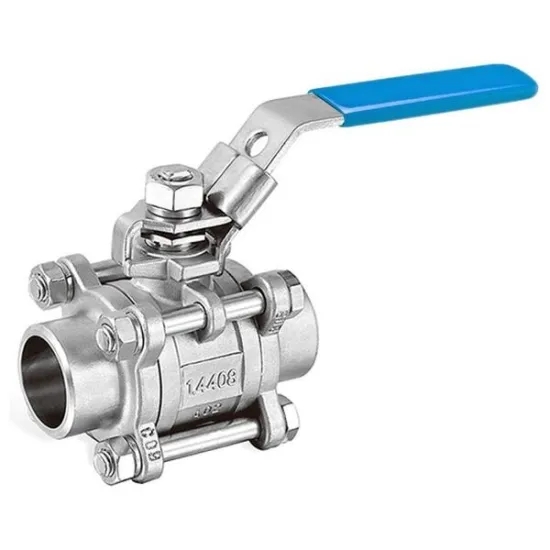

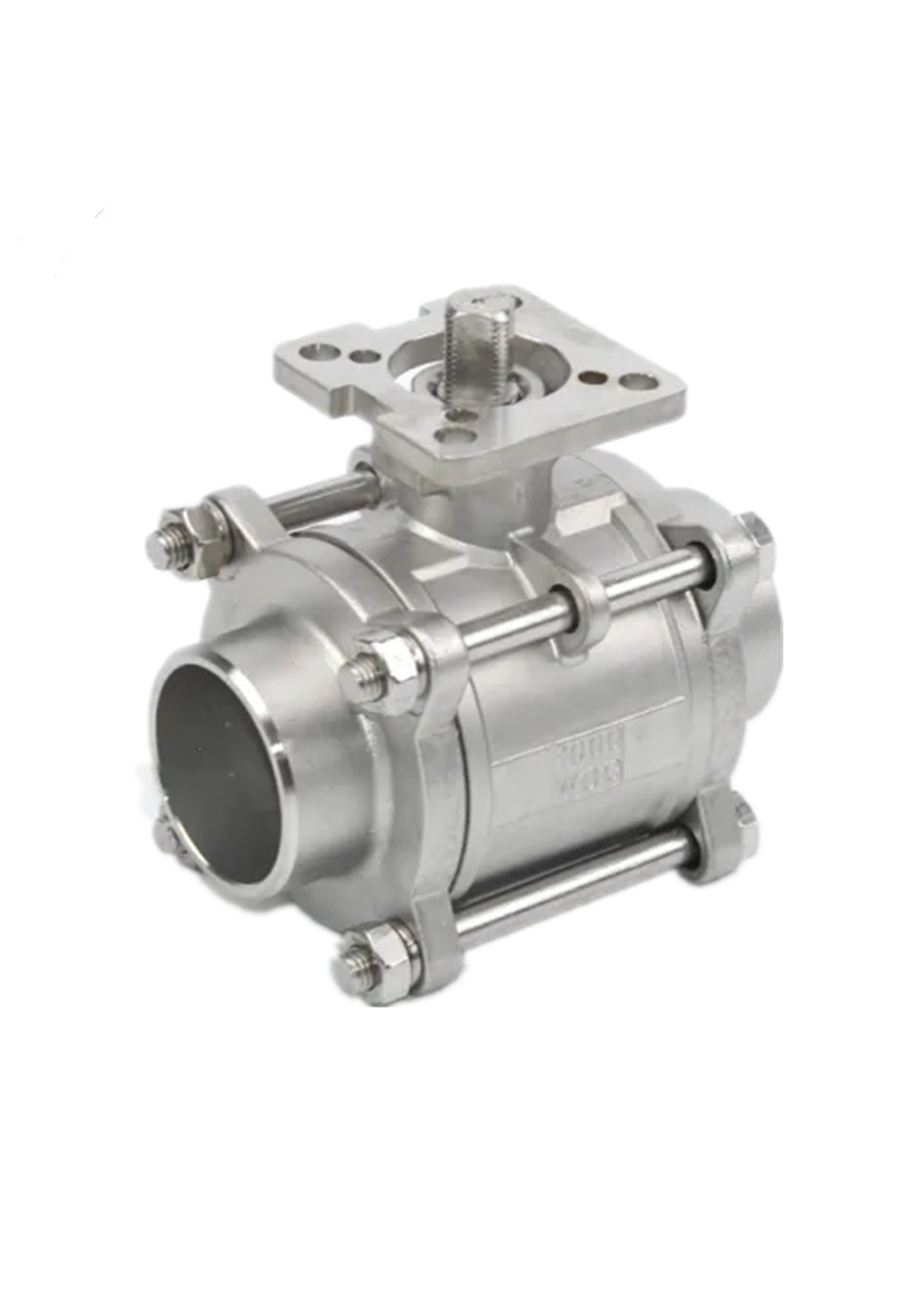

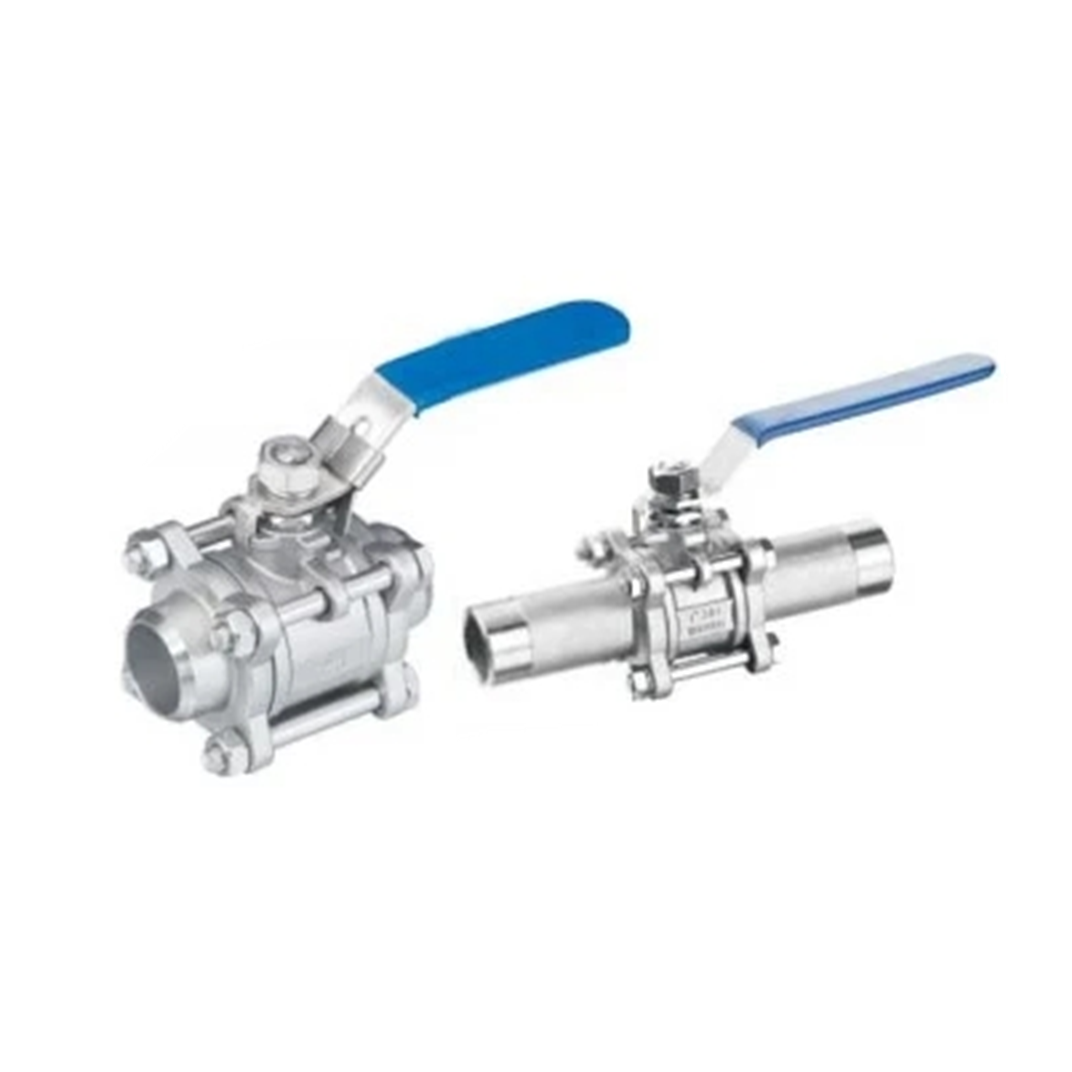

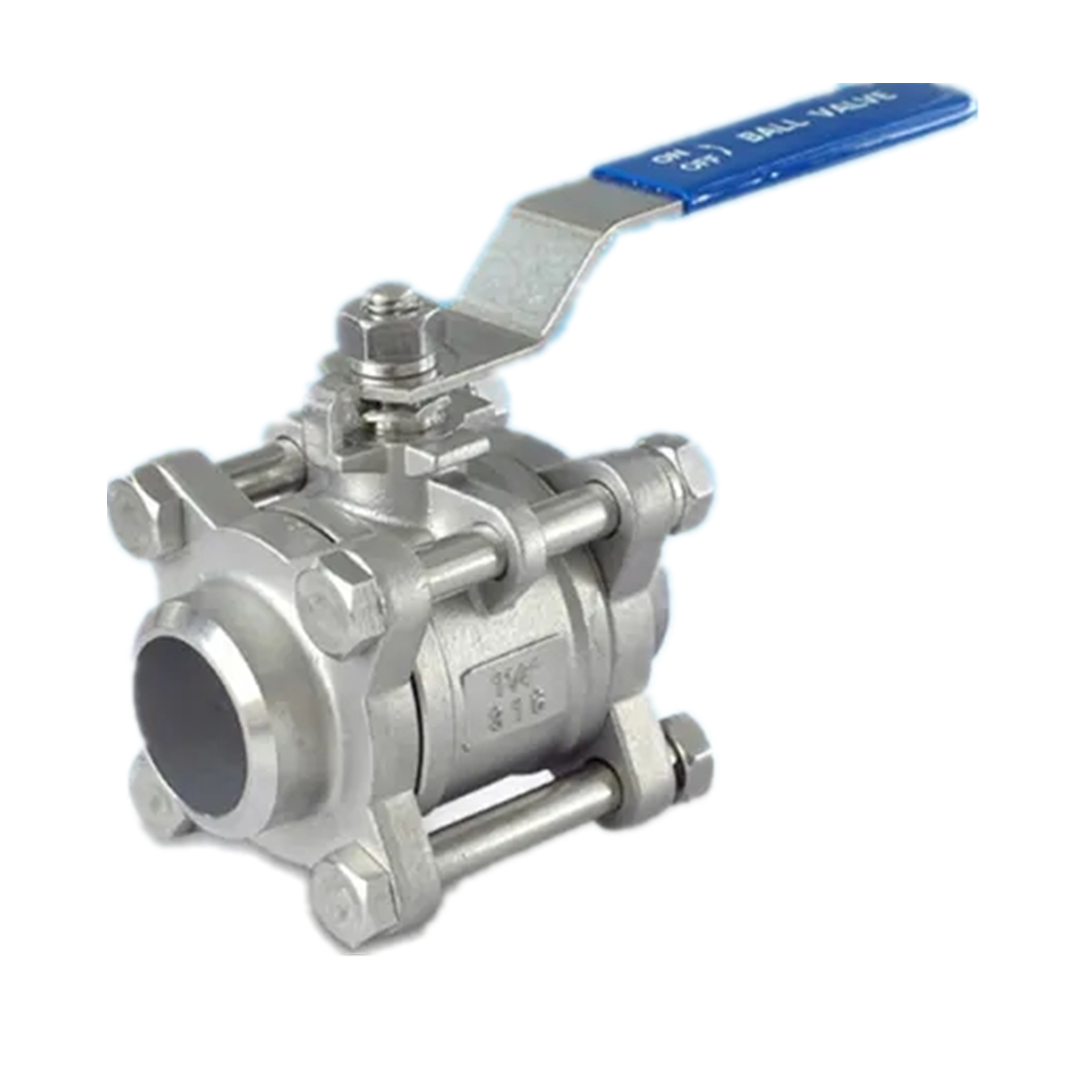

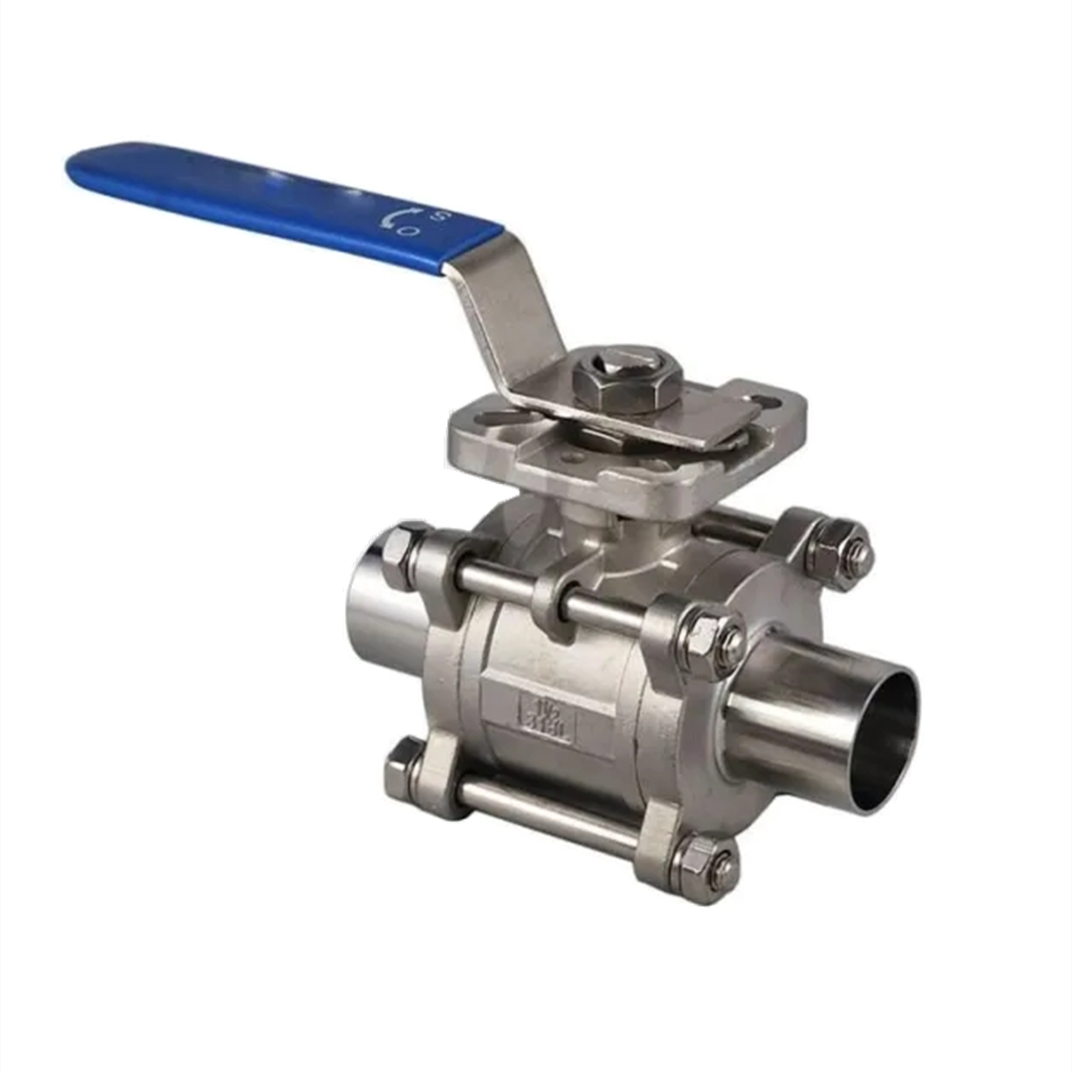

3PC Stainless Steel Ball Valve with Butt-welded Ends
Main Parts and Materials
| 1 | CAP | CF8M/CF8/WCB | 9 | THRUST WASHER | PTFE |
| 2 | BOLT WASHER | SS304/SS/SS316 | 10 | PACKING | PTFE |
| 3 | HEX NUT | SS304/SS/SS316 | 11 | GLAND | SS304/SS |
| 4 | BOLT | SS304/SS/SS316 | 12 | HANDLE | SS304/SS |
| 5 | BODY | CF8M/CF8/WCB | 13 | SPRING WASHER | SS304/SS |
| 6 | SEAT | PTFE | 14 | STEM NUT | SS304/SS |
| 7 | BALL | SS316/SS304/SS | 15 | PLASTIC COVER | PLASTIC |
| 8 | STEM | SS316/SS304/SS |
Main Dimensions
| NPS | DN | d | D | L | W | H |
| 1/4" | 8 | 12.5 | 16.4 | 68 | 90 | 53 |
| 3/8" | 10 | 12.5 | 18.6 | 68 | 90 | 53 |
| 1/2" | 15 | 15 | 22.6 | 74 | 90 | 56 |
| 3/4" | 20 | 20 | 28.8 | 84 | 108 | 65 |
| 1" | 25 | 25 | 34.8 | 94 | 123 | 69 |
| 11/4" | 32 | 32 | 44.2 | 110 | 170 | 81.5 |
| 11/2" | 40 | 38 | 50.8 | 126 | 170 | 86.5 |
| 2" | 50 | 49 | 62.8 | 147 | 170 | 102 |
| 21/2" | 65 | 62 | 75.4 | 185 | 240 | 133 |
| 3" | 80 | 76 | 94 | 216 | 240 | 133 |
| 4" | 100 | 94 | 114 | 270 | 280 | 173 |
