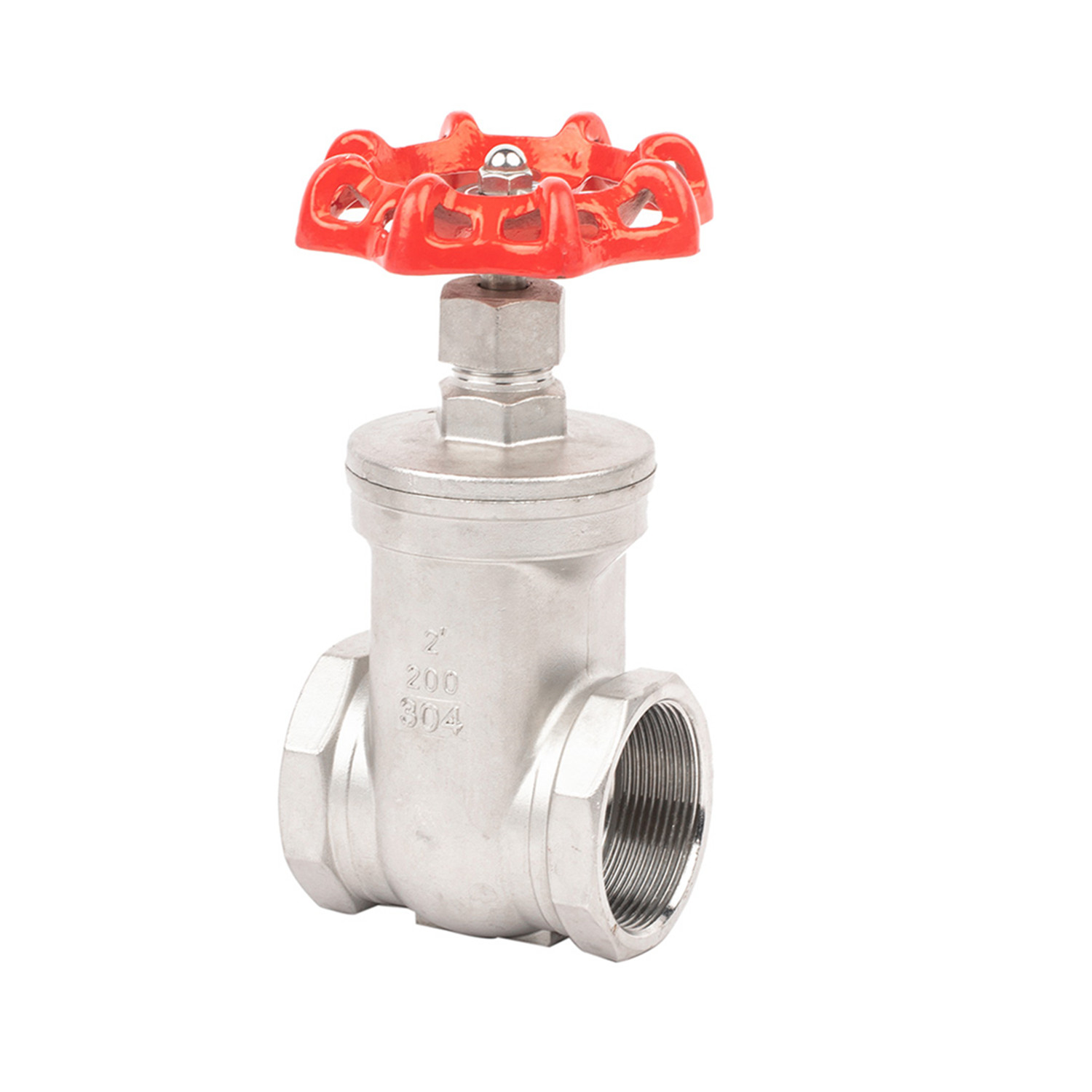

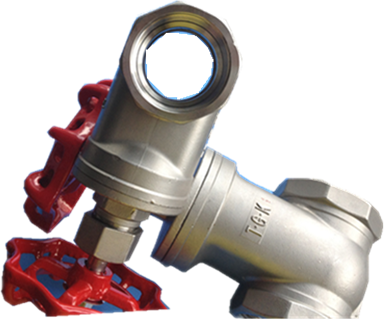

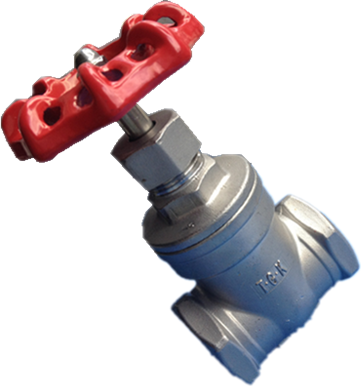

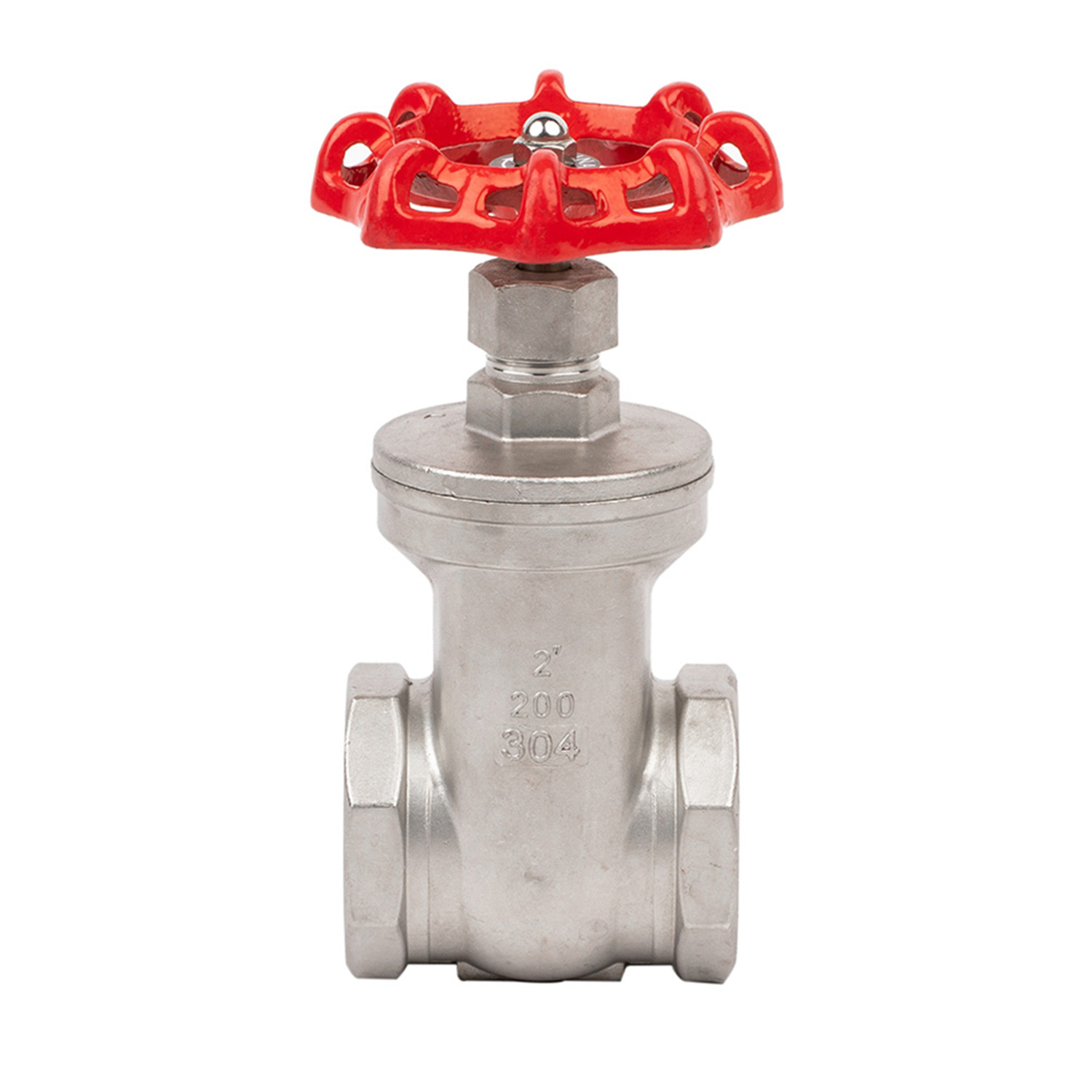

Stainless Steel Threaded Gate Valve
Main Parts and Materials
| 1 | Body | SS304/SS316 | 7 | Cap Nut | SS304/SS316 |
| 2 | Disc | SS304/SS316 | 8 | Stem | SS304/SS316 |
| 3 | Bonnet | SS304/SS316 | 9 | Handle | WCB |
| 4 | Gasket-A | PTFE | 10 | Spring Washer | SS304 |
| 5 | O Ring | VITON | 11 | Stem Nut | SS304 |
| 6 | Gasket-B | PTFE |
Main Dimensions
| NPS | DN | L | W | H |
| 1/2" | 15 | 55 | 72 | 85 |
| 3/4" | 20 | 60 | 72 | 85 |
| 1" | 25 | 66 | 80 | 112 |
| 11/4" | 32 | 75 | 80 | 120 |
| 11/2" | 40 | 85 | 90 | 146 |
| 2" | 50 | 95 | 100 | 160 |
| 21/2" | 65 | 110 | 130 | 200 |
| 3" | 80 | 120 | 140 | 230 |
