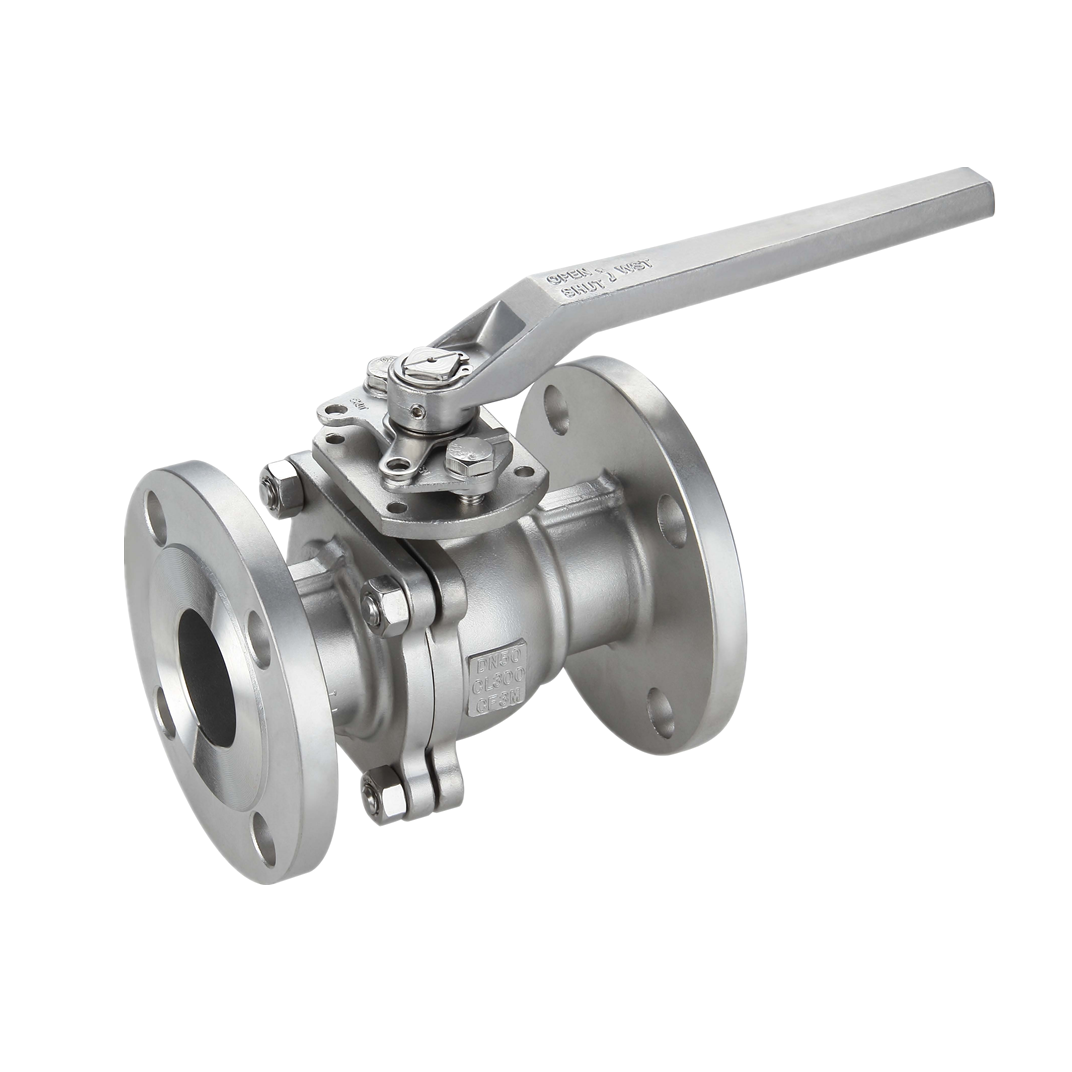

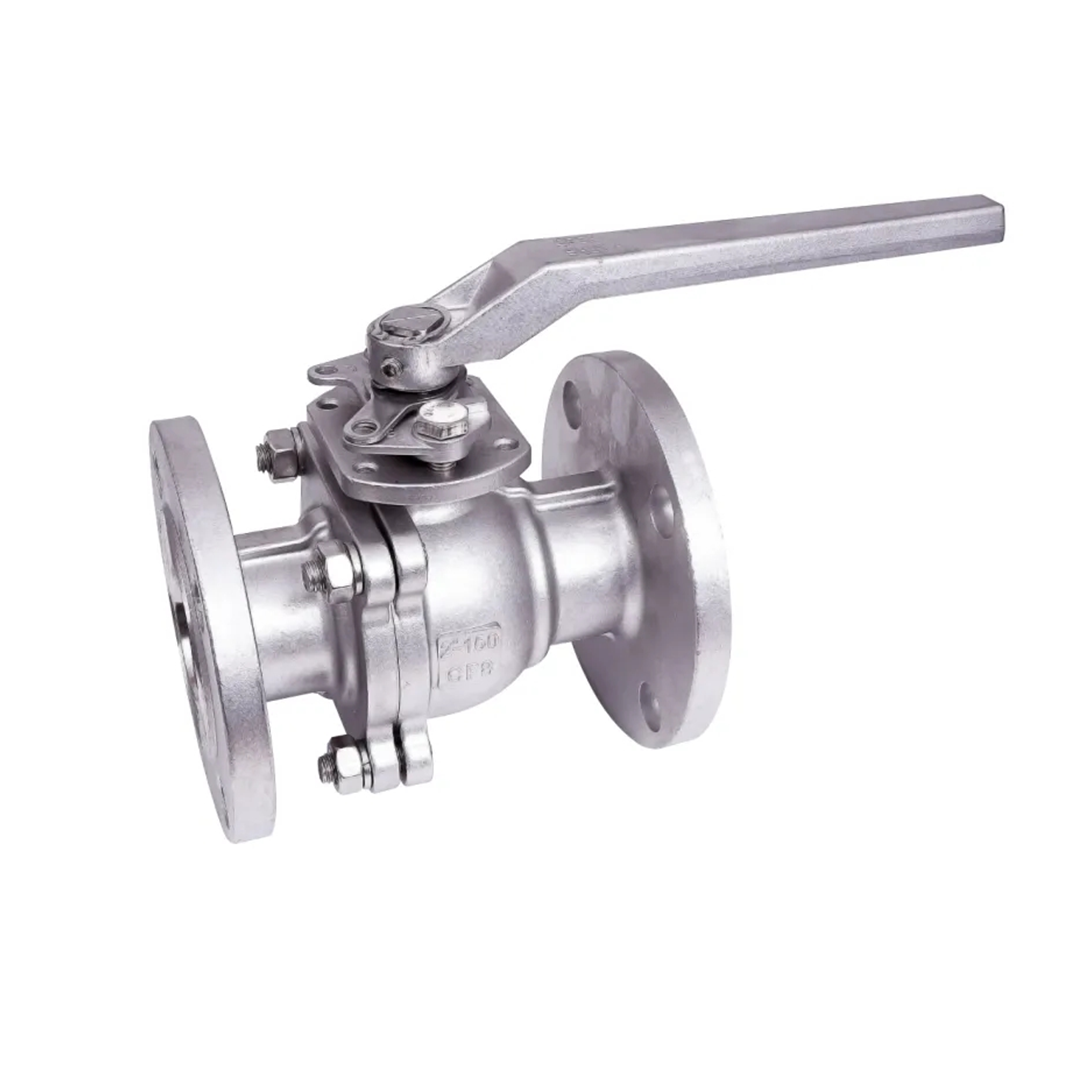

ANSI Stainless Steel 2PC Ball Valve CLASS300
Main Parts and Materials
| 1 | Cap | WCB/CF8/CF8M | 9 | Thrust Washer | SS/SS304/SS316 |
| 2 | Body | WCB/CF8/CF8M | 10 | Packing | SS/SS304/SS316 |
| 3 | Bolt | SS/SS304/SS316 | 11 | Gland | SS/SS304/SS316 |
| 4 | Seat | PTFE | 12 | Handle | SS |
| 5 | Bolt Washer | SS/SS304/SS316 | 13 | Spring Washer | SS/SS304/SS316 |
| 6 | Hex Nut | SS/SS304/SS316 | 14 | Stem Nut | SS/SS304/SS316 |
| 7 | Ball | SS/SS304/SS316 | 15 | Plastic Cover | Plastic |
| 8 | Stem | SS/SS304/SS316 |
| Product Name | SS316 Full Bore ANSI 300LB Stainless Steel Flange Ball Valve |
| 1. Material | A351 CF8M/CF8/CF3, A216 WCB, A352 LCB/LCB |
| 2. Size | 1/2''~8'' ( DN15~DN200) |
| 3.Certificate | ISO9001 & CE |
| 4. Port | Full Port |
| 5. Working Pressure | PN16~PN40 |
| 6. Connection Ends | Flange(RF/RTJ) |
| 7. Working Temp. | -196oC~450oC(Different temperature choose different materials) |
| 8. Suitable Medium | Water, Steam, Oil and natural gas etc. |
| 9. Seal | PTFE, RPTFE, PPL |
| 10. Locking | Option |
| 11. Inspection & Testing | According to DIN2401 |
