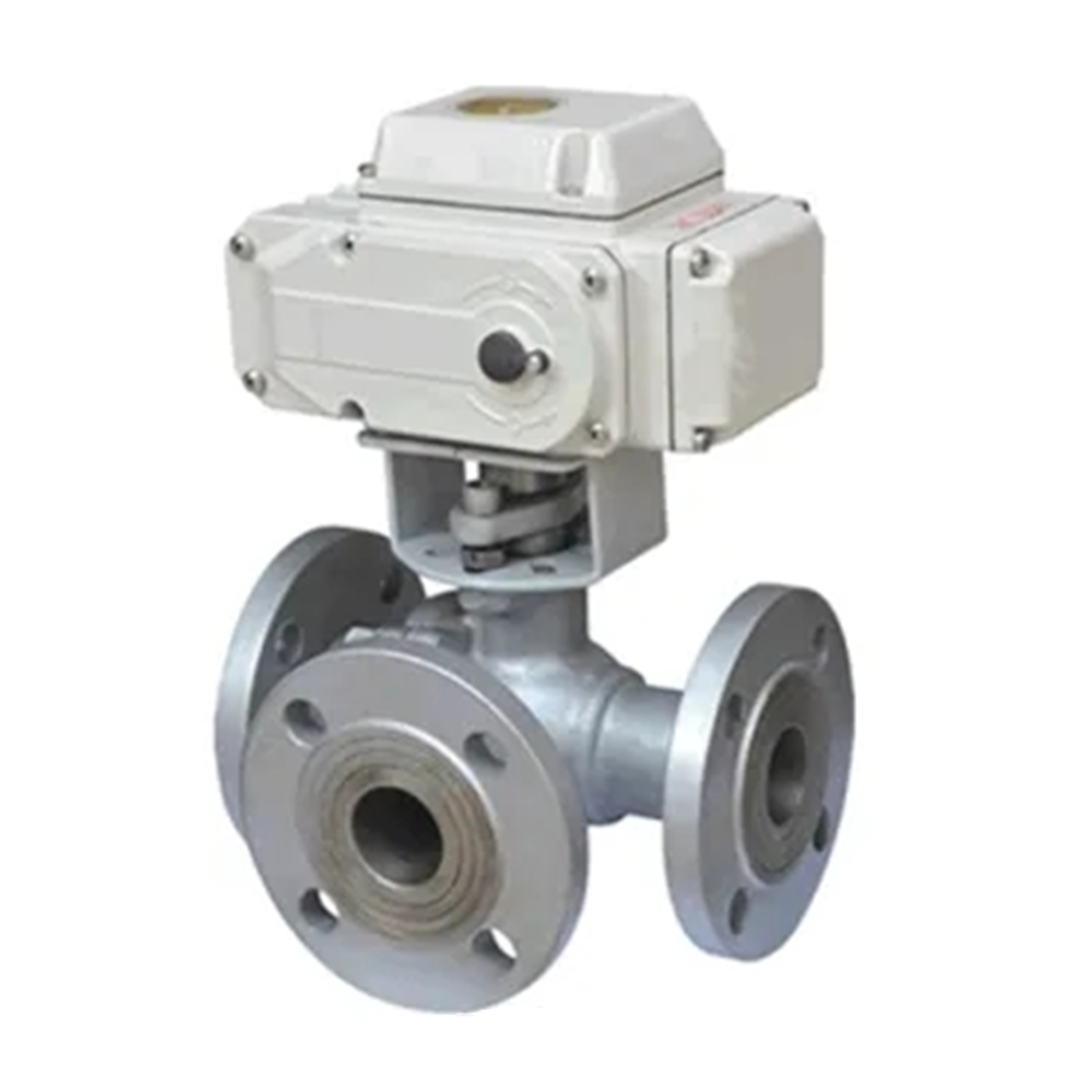

Stainless Steel Three Way Flanged Ball Valve with Electric Actuator
| Product Name | 3-Way Stainless Steel Flanged Ball Valve with Electric Actuator |
| 1. Material | Stainless Steel 304/316/304L/316L ( CF8/CF8M/CF3/CF3M) |
| 2. Size | 1/2''~8'' ( DN15~DN200) |
| 3.Certificate | ISO9001 |
| 4. Port | Reduced Port |
| 5. Working Pressure | 150LB/PN16 |
| 6. Connection Ends | RF Flanged |
| 7. Working Temp. | -20~300oC |
| 8. Suitable Medium | Water, Natural Gas, Oil and some corrosive liquid |
| 9. Seal | PTFE, RPTFE, PPL |
| 10. Locking | Option |
| 11. Inspection & Testing | According to API598 |
| Shipment | |
| Delivery Time | 20~30 Days |
| Package | Standard Exporting Plywood Case |
| Shipping Port | Ningbo/Shanghai, China |
| Shipping Terms | Exw, FOB, CFR, CIF, etc. |
| Payment Terms | T/T, Western Union, etc. |
| 30% prepayment, 70% balance paid before shipping or against copy of BL | |
| Warranty | 18 Months after leaving factory |
| Advantage | OEM is applicable |
| Others | We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Fire Hydrant Valve ,Booster Valve,Fully Welded Ball Valve & Y Strainer.,etc. |
