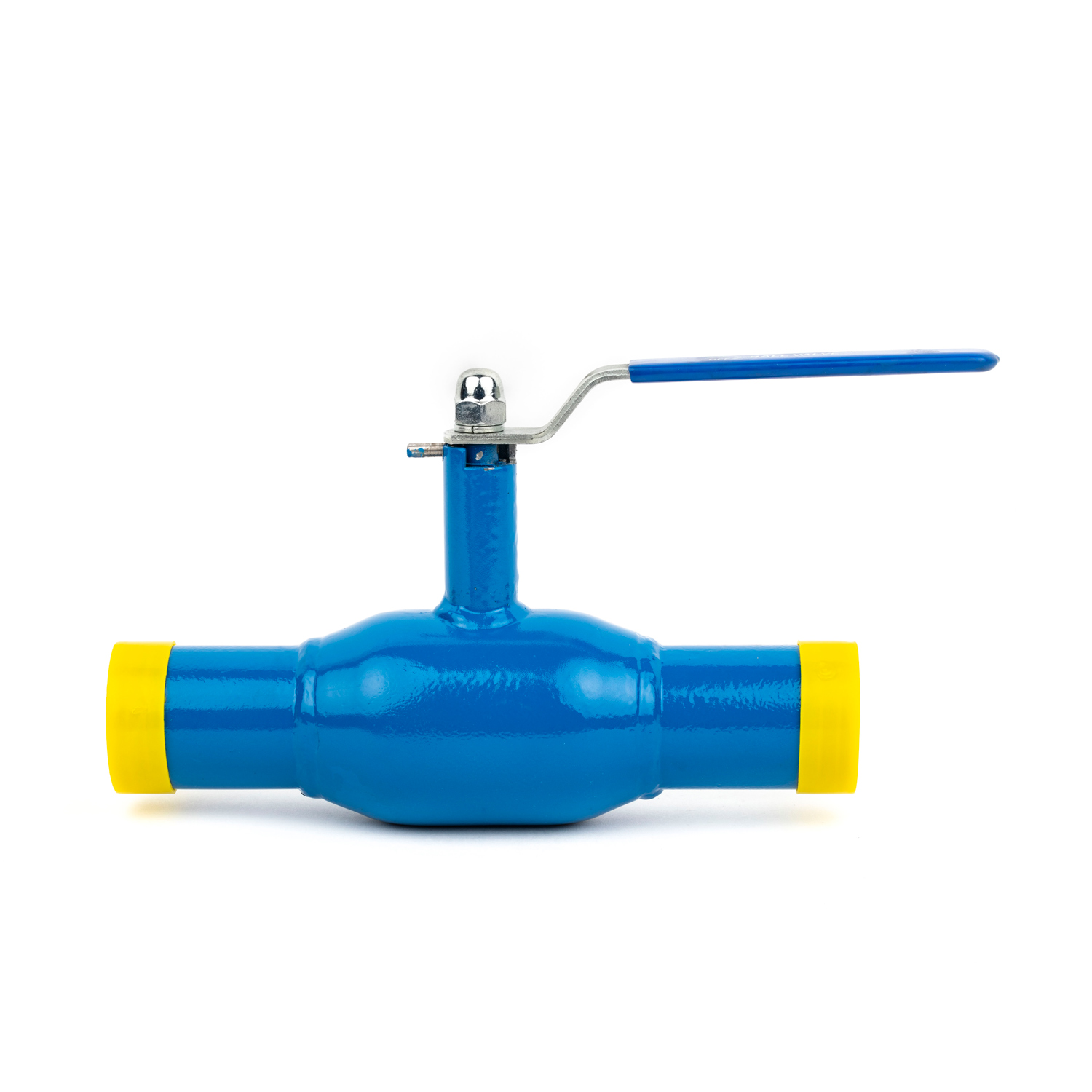

Lever Operated BW Fully Welded Ball Valve PN25
Main Parts and Materials
| 1 | Body | AISI 20 | 6.2 | Hexagon Screw | 8.8 |
| 2 | End Socket | AISI 20 | 6.3 | O-Ring | Viton |
| 3 | Ball | 304 | 6.4 | Oilless Bearing | 304+PTFE |
| 4.1 | Support Ring | A105 | 6.5 | Drain Plug | 20Cr13 |
| 4.2 | Seat | PTFE-C | 7.1 | Branch Pipe | AISI 20 |
| 4.3 | O-Ring | Viton | 7.2 | Upper Gland | A105 |
| 4.5 | Spring | 17-7PH | 7.3 | O-Ring | Viton |
| 5.1 | Stem | 20Cr13 | 7.4 | Gasket | RPTFE |
| 5.2 | Oilless Bearing | 304+PTFE | 7.5 | Packing | 20Cr13 |
| 5.3 | Thrust Gasket | PTFE | 7.5 | Hexagon Screw | 8.8 |
| 5.4 | O-Ring | Viton | 7.6 | Clamp Spring | 65Mn |
| 5.5 | O-Ring | Viton | 41 | Actuator | |
| 5.6 | Flat Key | AISI 1045 | 42 | Bolt | 8.8 |
| 6.1 | Base | A105 | 43 | Nut | 8 |
